S. Waqar H. Shah  ( Department of Gastroenterology, Shaikh Zayed Postgraduate Medical Institute, Lahore. )
Anwaar A.Khan  ( Department of Gastroenterology, Shaikh Zayed Postgraduate Medical Institute, Lahore. )
Altaf Alam  ( Department of Gastroenterology, Shaikh Zayed Postgraduate Medical Institute, Lahore. )
Arshad K. Butt  ( Department of Gastroenterology, Shaikh Zayed Postgraduate Medical Institute, Lahore. )
Farzana Shafqat  ( Department of Gastroenterology, Shaikh Zayed Postgraduate Medical Institute, Lahore. )

Of 130 patients diagnosed to have esophageal motility disorders, transformation of diffuse esophageal spasm (DES) into achalasia was identified in one patient. The clinical syndmme of DES was first described by Hamilton Osgood in 1889¹. It is characterizedby symptoms of substernal chest pain and dysphagia, tertiary contractions on barium swallow and a manometric pattern of frequent simultaneous contractions, interspersed with normal peristalsis. It accounts for 4-15% of the esophageal motility disorders identified in patients with non-cardiac chest pain^2,3. Various lower esophageal sphincter (LES) abnormalities i.e., incomplete sphincter relaxation, hypertensive LES have been reported to coexist with diffuse esophageal spasm^4,5. This suggests that some of these disorders may represent a dynamic spectmm of esophageal dysmotility rarely, transforming one into the other condition⁷. This report describes one case transforming from DES to achalasia.

A 35 years old nmle presented witha9 month history of mild retrosternal pain associated with swallowing. Cardiac evaluation by a consultant cardiologist was normal. Barium swallow evaluated at fluoroscopy showed tertiary contractions at mid and lower esophagus (Figure 1).

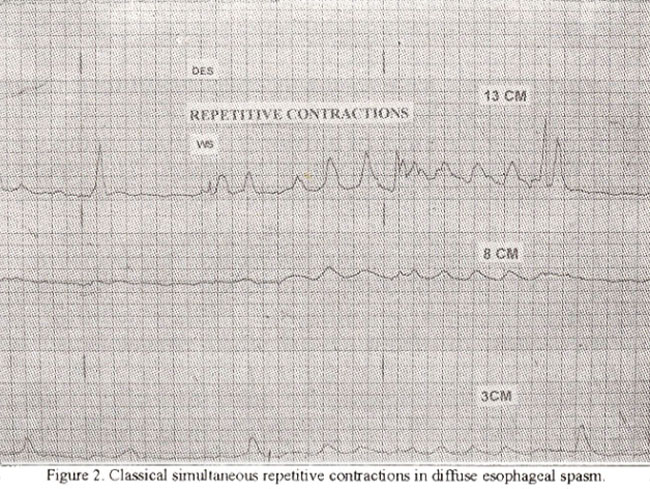

Upper G.I. endoscopy (EGD) was normal. His esophageal manometry was performed using an 8 lumen polyvinyl catheter, a low compliance pneumohydraulic capillary perfusion system (Arndorfer medical specialities Greendale, USA) and a recording physiograph (Hewlett Packard, Chicago). Lower esophageal sphincter (LES) pressure was measured at the peak end expiratory phase as the mean of 4 values and found to be 10 mm Hg with complete relaxation on wet swallow (WS). Three simultaneous and 8 propagated peristaltic contractions were noted after 10 WS with normal upper esophageal sphincter pressure. Intravenous edrophonium 0.08 mg/kg was given, showing increase in amplitude and duration of contractions with intervening multiple peaks and repetitive contractions (Figure 2).

He experienced mild retrostemal chest pain, relieved after 10 minutes. A final diagnosis of DES was made for which diltiazem 60 mg 8 hourly was given with marked relief of symptoms. During one year of follow-up, he noted improvement of chest pain and choking sensation, however, he continued to have a feeling of food lodging in lower chest. Repeat barium swallow at this time showed markedly dilated esophagus with smooth tapering of the gastroesophageal junction (Figure 3).

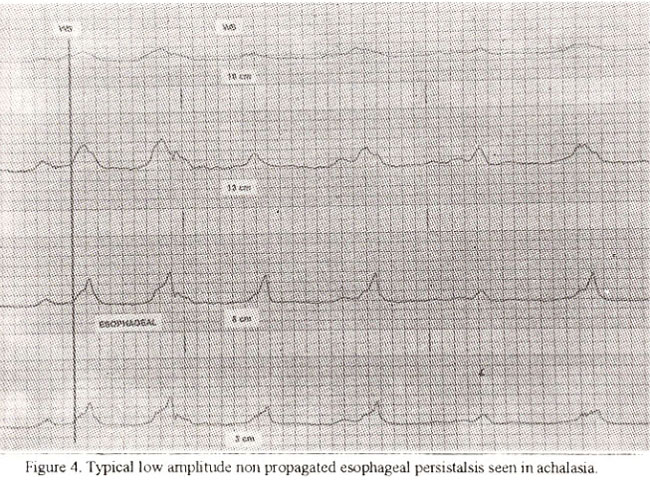

Esophageal manometry showed resting LES pressure of 13 mm Hg, residual pressure of 3 mm Hg and aperistalsis in the esophageal body, suggestive of achalasia (Figure 4).

He underwent balloon dilalation after informed consent with a 35 mm pneumatic (microvasive) balloon.

This resulted in relief of dysphagia with no recurrence of chest pain during 1 year follow-up.

Transfonuation of DES into achalasia has been reported in the literature as a rare occurrence. Diffuse esophageal spasm (DES) accounts for 4-15% of the esophageal motility disorders identified in the non-cardiac chest pain patients⁸. It is a difficult condition to diagnose as most of the patients are usually labeled as “cardiac patients”, despite normal or equivocal investigations. Some patients with DES who respond to nitrates and calcium channel blockers^9-13 are presumed to have ischaemic heart disease. Unfortunately the routine upper GI investigations i.e., barium swallow and EGD may be normal in many patients and itis only with esophageal manometty, that the diagnosis is confirmed. Manometric fmdings in most patients may not show the high amplitude, simultaneous contractions unless the patient is symptomatic for chest pain at the time the test is conducted, thus necessitating provocative test as intravenous edrophonium.
This may increase the contraction amplitude with reproduction of chest pain simulating the clinical situation¹⁴. This may occur in 18-30% patients with DES^15-16. Transformation from DES into achalasia, as in this patient, shows a dynamic nature of motility disorders. Most patients with achalasia at the time of diagnosis have a well established disease with all features of completely developed achalasia, so one does not geta grasp on”achalasia in evolution” which may actually be more common than observed. This notion is further substantiated in a follow up study of DES transforming into achalasia, where this transformation took as long as 3.7 years¹⁷. Others have reported similar transition, well documented symptomatically, radiologicallgy and on manometric evaluation as presented in Table^16,18,19 Vigorous achalasia shares common presentation with DES i.e., chest pain and dysphagia but may be distinguished onmanometric evaluation showing high amplitude simultaneous contractions with 10% normal intervening persistalsis whereas in vigorous achalasia normal persistaltic activity is not seen. This case further supports that DES may transform periodically into achalasia if such cases are followed-up diligently. Once established, they may respond to standard therapy for achalasia, which is usually more gratifying than the treatment of DES.

We wish to thank Dr. Donald 0 Castell, Kimbel Professor and Chairman, Department of Medicine, The Graduate Hospital, Philadelphia for editing this manuscript.

1. Osgood, H. A peculiar form of oesophagisum. Boston Med. Surg. J., 1889; 120:40 1-405.
2. Clouse, RE. and Staiano, A Contraction abnormalities ofthe oesophageal body in pattents referred for manometty A new approach to manometrie classifica­tion. Dig. Dis. Sci., 1983;28.784-791.
3. Dalton, C.B., Castell, D.O , Hewson, E.W. et at. Diffuse esophageal spasm: A rare motality disorder not characterized by high-amplitude contractions. Dig. Dis Sci., 1991;36:1025-1028.
4. DiMarino, A.J. and Cohen, S. Characteristics of lower esophageal sphincter function in symptomatic diffuse esophageal spasm. Gastroenterology, 1974;66: 1-6.
5. Kaye, M.D. Anomalies of peristalsis in idiopathic diffuse esophageal spasm. Gut., 1981:22:217-222.
6. Vantrsppen, G., Janssens, 3., Hellerman, 3. et at. Achalasia, diffuse esophageal spasm and related motility disorders. Gastroenterology, 1979;76 450-457.
7. Caste!!, D.C. The spectrum of esophageal motility disorders. Gastroenterology, 1979;76:639-645.
8. Katz, P.C., Dalton, C.B., Richter, J.E. et al. Esophageal testing of patients with non cardiac cheat pain and/or dysphagia. Results of a threeyear experience with 116! patients. Ann.Intern. Med., 187;106:593-597.
9. Shlemmel, A., Priviteri, CA. and Poppel, M.H. A atudy of the effects of certain drugs on curling of the esophagus. Am. J. Roentgenol,, 1949;62 :807-810.
10. Swamy, N. Esophageal spasm and manometric response to nitroglycerin and long acting nitrates. Gastroenterology, 1977;72:23-27.
11. Orlando, R.C. and Bozymski, F.M. Clinical and manomctric effects of nitroglycerin in diffuse esophageal spasm. N. EngI. J. Med., 1973;289:23-25.
12. Blackwell, J.N.,Holt, S. and Heading, R.C. Effects of nifedipine on esophageal motility and gastric emptying. Digestion, 198 1;21:50-56.
13. Richter, J.E. Effects of oral calcium blocker, diltiazem on esophageal contrac­tions. Dig. Dis. Sci., 1984;29:649-656.
14. Richter, J.E. Diffuse esophageal spasm. In Castell eds. Esophageal motility testing, (2nd ed), Norwalk CT, Appleton and Lange, 1994, pp: 122-34.
15. Benjamin, SB., Richter, S.F., Cordora, CM. et al. Prospective manometrie evaluation with pharmacologic provocation of patients with suspected esopha­geal motility dysfunction. Gaatroenterology, 1983;84:893-90l.
16, Richter, SE., Hackshaw, B.T, Wu, W.C. et a!. Edrophonium: A useful provocative test for esophageal cheat pain. Ann. Intern. Med., 1985 ;103: 1421.
17. Rhoton, A.J., Dalton, C.B., Wu, W.C. et al. The natural history of diffuse esophageal spasm (DES); A long term follow-up study. Am, J. Gastroenterol., 1992;87 A 1256.
18. Kramer, P., Harris, L.D. and Donaldson, R.M. Transition from symptomatic diffuse spasm to cardiospasm. Gut., 1967;8: 115-1 8.
19. Achem, SR., Kolts, BE., MacMath, T. et a!. Esophageal motor disorders: Pattems and understanding in a state of flux. Gastroenterology, 1991; 100(5 pt 2): A24-25.
