Samina Zaman  ( Department of Histopathology, Children`s Hospital and Institute of Child Health, Lahore. )
Ghazala Hanif  ( Department of Histopathology, Children`s Hospital and Institute of Child Health, Lahore. )
Mahvish Hussain  ( Department of Histopathology, Children`s Hospital and Institute of Child Health, Lahore. )
Zunaira Basit  ( Department of Histopathology, Children`s Hospital and Institute of Child Health, Lahore. )
Saadia Khan  ( Department of Histopathology, Children`s Hospital and Institute of Child Health, Lahore. )
Zonaira Rathore  ( Department of Histopathology, Children`s Hospital and Institute of Child Health, Lahore. )
Awais Naeem  ( Nishtar Medical College, Multan. )
Mehreen Nasir  ( Fatima Memorial Hospital, Lahore. )

Objectives: In this report, we share our experience about the common types of childhood hepatic tumours during 10 years (2001-2010) and compare them with other studies.
Methods: During 10 years (2001-2010), all the hepatic tumours of childhood received at Pathology Department of the Children Hospital and Institute of Child Health, Lahore Pakistan are recorded. This includes both resected specimens and biopsies. All the slides were reviewed and the pathologic diagnosis was confirmed.
Results: We diagnosed 48 liver tumour cases in children (below 18 years of age). Among these tumours, 39 (81.25%) were malignant. Male to female ratio was 2 : 1. Hepatoblastoma was the most common liver tumour in this age group accounting for 69.23% of all malignant tumours (27 cases). The second most common primary tumour was hepatocellular carcinoma diagnosed in six patients (15.38%). Other malignant tumours were undifferentiated embryonal sarcoma and biliary rhabdomyosarcoma. Benign tumours included mesenchymal hamartoma, infantile haemangioendotheloima, hemangioma and benign cyst. There were also three metastatic tumours during these 10 years. In one case there was tumour necrosis only and as such no definitive diagnosis was rendered.
Conclusion: The spectrum of hepatic tumours in children is different from that found in the older age group and most of them are malignant.
Keywords: Hepatoblastoma, Hepatic tumour, Hepatocellular carcinoma, Lahore, Pakistan, Rhabdomyosarcoma (JPMA 61: 1079; 2011).

Hepatic tumours are a varied group of benign and malignant neoplasm occurring in children. Primary neoplasms of the liver are rare in children comprising only 1-4% of all solid malignancies for children younger than 18 year of age.¹
Two third of liver tumours in children are malignant with two third of them being Hepatoblastoma (HBL) Other childhood liver malignancies include hepatocellular carcinoma (HCC), sarcomas, germ cell tumour and rhabdoid tumour. Benign liver tumours include vascular tumours, hamartomas and adenomas.²
The histopathology of childhood hepatic tumours guides the treatment and prognosis, and is the cornerstone for precise diagnosis. Until now, to our knowledge, there has been no documented study on paediatric liver tumour cases from anywhere in Pakistan; in this study, we share our experience about the common types of childhood hepatic tumours during ten years (2001-2010) and compare them with other studies.

All the hepatic tumours of childhood (under 18 years age) reported during ten years (2001-2010) were retrieved from the Histopathology Department of the Children Hospital and the Institute of Child Health. Data regarding age and gender distribution was recorded. These include both resected specimens (n=14) and biopsies (n=34). All the slides were reviewed and the pathologic diagnosis was confirmed. Routine Haematoxylin and eosin staining was done using special stains like PAS and Immunohistochemistry on selected cases.

During this ten year study period, forty eight children presented with hepatic tumours. Male to female ratio was 2 to 1. There were 9 (18.75%) cases of benign and 39 (81.25 %) cases of malignant hepatic tumours.
Of the benign tumours, the most frequently diagnosed tumour was mesenchymal hamartoma 4 (44.44%) cases with equal sex distribution. Age range observed was 8 months to 5 years. Infantile haemangioendotheloima was seen in 2(22.22%) cases. Both cases were seen in females at young age of 3 and 7 months. Two cases (22.22%) of haemangioma were also diagnosed during this period. Single case of benign hepatic cyst was found.
Among malignant hepatic tumours, HBL was the most common liver tumour in this age group accounting for 27 (69.23 %) patients (Figure-1),

followed by 6 (15.38%) cases of HCC and 3 (7.6%) cases of metastatic tumours. Other malignant tumours were undifferentiated embryonal sarcoma (UES) (Figure-2)

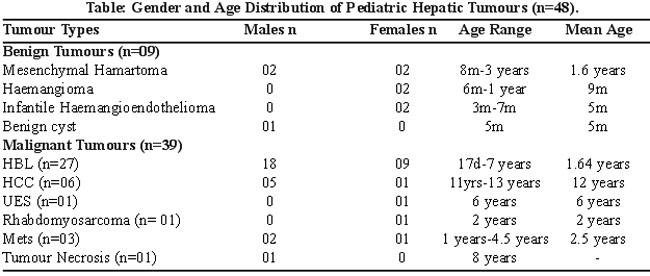

and biliary rhabdomyosarcoma. One case showed tumour necrosis only. Gender and age distribution is shown in (Table).


Regarding different histologic subtype of HBL, most of these were epithelial (16cases, 59.25%) with 10 (37.04%) cases of foetal, 6 (22.22%) cases of embryonal and one (3.7%) case of macrotrabecular HBL. No case of small cell undifferentiated HBL was observed in our study. Mixed Epithelial Mesenchymal type accounted for 11(40.74%) cases. Differentiated mesenchymal tissue was present in 8 cases, osteoid in 2 cases and cartilage in 1 case.
The second most common primary tumour was hepatocellular carcinoma (HCC), in 6 (15.38%) patients with all cases occurring after 1st decade of life. Only one case of HCC was associated with hepatitis B. We had two patients of malignant mesenchymal tumours with one case each of UES and biliary rhabdomyosarcoma.
Metastatic tumours were seen in 3 (7.6%) cases, first in 1 year old male having Neuroblastoma, second in 4 year old boy with undifferentiated malignant neoplasm in parapharyngeal area and third case was of metastatic Non-Hodgkins Lymphoma.

Primary hepatic malignancies make up 1-4% of all malignant neoplasm cases among children less than 18 years of age.1 They are clinically relevant as 2/3rd of them are malignant.³ Spectrum of hepatic tumours in children is different from adult hepatic tumour. With the exception of HCC, all other types of hepatic tumours occurring in children are unique and rarely encountered in adults.⁴
There is remarkable diversity of benign tumour masses in children.⁵ Hepatic vascular tumours (HVT) are the commonest benign liver tumours in children and are frequently associated with high output cardiac failure. HVT are divided into haemangioma, infantile haemangioendothelioma and arteriovenous malformation.⁶
A study carried by François et al found that 42% of all hepatic tumours were benign with haemangioma and IHE being the most commonest followed by mesenchymal hamartoma. This is in contrast to our study in which we report only 18.75% cases of benign tumours with mesenchymal hamartoma being commonest amongst them.⁷ However, Coronado and Angulo in Mexico also found MH to be the commonest benign tumour⁸ whereas in Iran equal frequency of vascular tumours and MH was observed.⁴ MH typically present with abdominal distension or mass in children under 2 years of age and is composed of both epithelial and mesenchymal components.^9,10 Extramedullary haematopoeisis is present in 85% of cases.¹¹ Mesenchymal hamartoma requires surgery for cure.¹²
The two most common malignant tumours of children are HBL and HCC. A strong male predominance for both HBL and HCC has been observed by us.
HBL accounts for 91% of primary hepatic carcinoma in children less than 5 year of age.¹ Similar finding was observed in the present study where HBL comprised of 96.29% of primary malignant liver neoplasms under 5 years age. The etiology of HBL remains unknown but association is seen with Beckwith-Weidman syndrome, FAP, and low birth weight. Different environmental factors implicated include exposure to metals in soldering, welding, petroleum and paints.^2,13,14 HBL is often unifocal, therefore, it is treated primarily by surgical resection but chemotherapy increases the number of resectable HBL.¹⁵
Most of these tumours are epithelial on histologic examination.⁴ We also observed more epithelial HBLs (59.25%) than mixed epithelial and mesenchymal HBLs (40.74%).
HCC occurs in older children (10-14 year) and more commonly affects boys just as in present study.¹⁵ In many Asian countries, HCC in children is 10 times more common than North America. This is related to high incidence of perinatally acquired hepatitis B.¹⁶ Bilobar and multifocal disease is more common¹⁷ and survival is below 30%.¹⁸ Around fifteen per cent of hepatic malignancies in our center were HCC. Only one was associated with hepatitis B. This is in contrast to a study by Moore et al carried out in South Africa where they observed a high incidence of HCC (35%) with two third of them being positive for HBsAg.¹⁹ HCC in children are also seen in association with tyrosinemia, other metabolic disorders and in hepatitis B infections acquired perinatally.⁵
UELS is described as a separate entity by Stocker et al in 1978. It is a rare tumour occurring exclusively in older children aged 6-10 years.²⁰ It presents with abdominal pain and mass with no jaundice and normal serum AFP levels. Histologically, diffuse anaplasia, PAS positive-DR hyaline globules and variable myxoid change. Differential diagnosis includes biliary rhabdomyosarcoma which occurs in younger children (1-5 year), present with jaundice.21 In the present study there was one case each of UELS and biliary rhabdomyosarcoma having above mentioned features.
Reports of metastatic liver tumours in children are scanty.⁴ Neuroblastoma is the most frequent tumour which metastasizes to liver in children followed by leukaemia, lymphoma and Wilms tumour. Other malignancies which give liver metastases are yolk sac tumour, rhabdomyosarcoma, rhabdoid tumour.^12,22 We encountered only three cases. One of them was metastatic B-cell Non-Hodgkin lymphoma.

The spectrum of hepatic tumours in children is different from that found in adults and majority of them are malignant.

The authors are thankful to Prof Tahir Masood Ahmad, the Dean of Children\\\'s Hospital and Institute of Child Health, Lahore for providing the work facilities. We cannot forget our technician Mr. Arshad for his very responsible attitude throughout this work.

1.Darbari A, Sabin KM, Shapiro CN, Schwarz KB. Epidemiology of primary hepatic malignancies in US children. Hepatol 2003; 38: 560-6.
2.Litten JB, Tomlinson GE. Liver tumours in children. The Oncologist 2008; 13: 812-20.
3.Emre S, Mckenna GJ. Liver tumours in children. Pediatr Transplant 2004; 8: 632-8.
4.Geramizadeh B, Bahador A, Foroutan H, Banani A, Nikeghbalian S, Malek-Hosseini SA. Pathology of pediatric liver tumours, a single center experience from south of Iran. Ind J Pathol Microbiol 2010; 53: 422-6.
5.Meyers RL, Scaife ER. Benign liver and biliary tract masses in infants and toddlers. Semin Pediatr Surg 2000; 9: 146-55.
6.Prokurat A, Kluge P, Chrupek M, Ko?ciesza A, Rajszys P. Hemangioma of the liver in children: Proliferating vascular tumour or congenital vascular malformation. Med Pediatr Oncol 2002; 39: 524-9.
7.Luks FI, Yazbeck S, Brandt ML, Benseussan AL, Brochu P, Blanchard H. Benign liver tumours in children: a 25 year experience. J Pediatr Surg 1991; 26: 1326-30.
8.Coronado Perez H, Angulo Herhandez O. [Liver neoplasms in children]. Bol Med Hosp Infant Mex 1981; 38: 723-40.
9.Vazquez-Lima I, Vazquez JL, Gallego M, Fernandez R, Fernandez P. Torsed pedunculated hepatic hamartoma. Pediatr Radiology 2009; 39: 62-5.
10.Kim SH, Kim WS, Cheon JE, Yoon HK, Kang GH, Kim IO, et al. Radiological spectrum of hepatic mesenchymal hamartoma in children. Korean J Radiol 2007; 8: 498-505.
11.Siddiqui MA, McKenna BJ. Hepatic mesenchymal hamartoma: A short review. Arch Pathol Lab Med 2006; 130: 1567-9.
12.Isaacs H Jr. Fetal and neonatal hepatic tumours. J Pediatr Surg 2007; 42: 1797-803.
13.Ikeda H, Matsuyama S, Tanimura M. Association between Hepatoblastoma and very low birth weight: a trend or a chance. J Pediatr 1997; 130: 557-60.
14.Herzog CE, Andrassy RJ, Eftekhari F. Childhood cancers: hepatoblastoma. Oncologist 2000; 5: 445-53.
15.Austin MT, Leys CM, Feurer ID, Lovvorn HN, O\\\'Neill JA Jr, Pinson CW, et al. Liver transplantation for childhood hepatic malignancy: a review of United Network for Organ Sharing (UNOS) database. J Pediatr Surg 2006; 41: 182-6.
16.Chang MH, Chen TH, Hsu HM, Wu TC, Kong MS, Liang DC, et al. Prevention of hepatocellular carcinoma by universal vaccination against hepatitis B virus: the effects and problems. Clin Cancer Res 2005; 11: 7953-7.
17.Stringer MD. The role of liver transplantation in the management of pediatric liver tumours. Ann R Coll Surg Engl 2007; 89: 12-21.
18.Czauderna P. Adult type vs childhood hepatocellular carcinoma-are they the same or different lesions? Biology, natural history, prognosis and treatment. Med Pediatr Oncol 2002; 39: 519-23.
19.Moore SW, Millar AJ, Hadley GP, Ionescu G, Kruger M, Poole J, et al. Hepatocellular carcinoma and liver tumours in South African children: a case for increased prevalence. Cancer 2004; 101: 642-9.
20.Kashif I, Zhang MX, Chen Yuan. Undifferentiated liver sarcoma- a rare entity: a case report and the review of literature. J Med Case Reports 2008; 2: 20.
21.Nicol K, Savell V, Moore J, Teot L, Spunt SL, Qualman S; Children\\\'s Oncology Group, Soft Tissue Sarcoma Committee Distinguishing undifferentiated embryonal sarcoma of the liver from biliary tract rhabdomyosarcoma: a children oncology group study. Pediatr Dev Pathol 2007; 10: 89-97.
22.Stocker JT. Hepatic tumours in children. Clin Liver Dis 2001; 5: 259-8.
